Basic Info.
Model NO.
Manhole Cover
Certification
RoHS, ISO, CE
Name
Cast Iron Manhole Cover
Logo
Customer Logo
Sizes
Customer Required
Standard
a) En124 A15, B125, C250, D400, E600 and F900
Grating
C250
Application
Kerbside Channel of Roads
Transport Package
Steel or Wood Pallet
Specification
CE, ISO
Trademark
OPTELEC
Origin
China
HS Code
73269090
Production Capacity
1000PCS/Month
Product Description

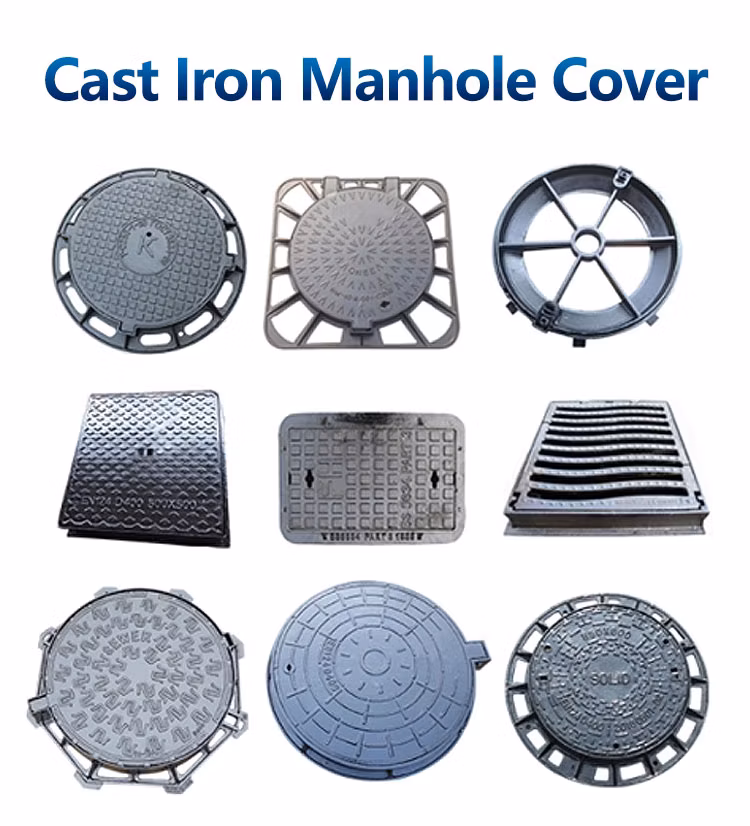

EN124 Square and Round Ductile Cast Steel Manhole Cover
Description:
| Material: Grey Iron, Ductile Iron (Ductile Steel) |
| Surface finish process: shot blast, painting, chrome plating, power coating |
| Made according to customers' drawing, specification or/ and samples |
| Standard: Class C-250 of the UNI EN 124 standard (250KN test force) |
Surface Treatment:
Surface Treatment: shot blast, painting, chrome plating, power coating
Marking:
The covers can be embedded with customer LOGO . .
Detail:
Appearance of the surface: Cover with non-slip iron trust exclusive design.
Application:
It is recommended to install according to NCH2080 on parking sidewalks for cars and roads with light traffic,also pedestrian areas and similar areas.
Technical data:
| Ductile Iron Manhole Cover and Grating | EN124:1994 | Material: GGG500-7 |
| Class | Application | Dimension (Frame mm) |
| A15 | Pedestrians, Pedal Cyclists | Dia760 |
| B125 | Footways, Pedestrians, Car parks | 290*290, dia800 ... |
| C250 | Kerbside channel of roads | 700*700, 600*800 ... |
| D400 | Road, hard shoulders etc. | 850*850, 920*920 ... |
| E600 | Docks, aircraft pavements etc. | as per your demands |
| F900 | Aircraft pavements etc. | as per your demands |
