Basic Info.
Model NO.
TMR02
Size
435X335/530X410/535X415
Gasket
Silicon/EPDM/FPM
Thickness
8mm
Height
75mm
Material
Ss304 or Ss316L
Seal Material
Silicon,EPDM, FPM
Pressure
0.5 Bar
Is_Customzied
Frame Height and Thickness Available on Request
Transport Package
Bubble Pack and Carton
Specification
435X335
Trademark
QM Stainless
Origin
Wenzhou, Zhejiang, China
HS Code
7326909000
Production Capacity
1000 Pieces Manyway Each Month
Product Description
| Product Name: | Rectangular Pressure Manway |
| Material: | SS304 or SS316L |
| Standard: | SMS, DIN, RJT, IDF |
| Size: | 435x335 |
| Height: | 75mm |
| Thickness: | 8mm |
| Type: | Outward |
| Polish: | Miorr or Satin |
| Installment: | Tank Side |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Working Pressure: | 0.5 Bar |
| Packing Details: | Carton box or plywood case, or special packaging upon customer requirements. |

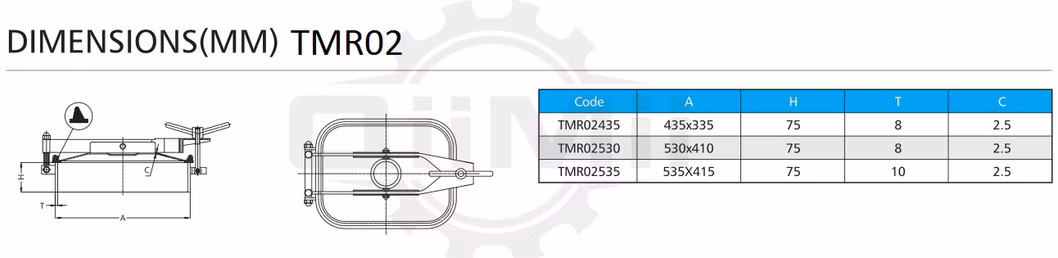

Product Show:
Packing&Shipping :
QM Stainless was set up in 2012,located in Wenzhou city providing a wide range of stainless steel products for food, dairy, beverage, cosmetic and wine industry.
Welcome to visit our websites (qmstainless.en.made-in-china.com) to browse our catalogue,and hope we can start the cooperation in the near future.
